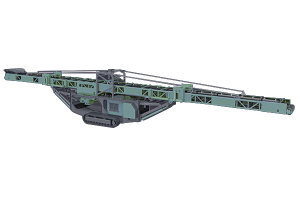

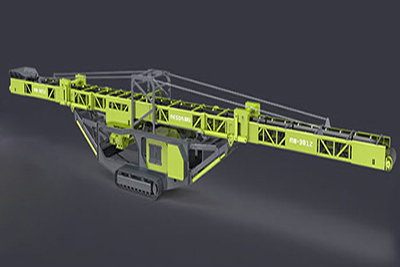

Crawler-type Belt Conveyor Mobile Station
We offer complete mobile crushing station for designs, installation and maintenance with long-term technical support and fast response.
Crawler-type Belt Conveyor Mobile Station
DEVICE DETAILS:
Due to its reasonable optimization design and intelligent process control, the crawler mobile conveyor has super mobility and flexibility. It has been installed and debugged before leaving the factory, and it can be quickly put into use without the need for supporting legs or fixed foundation after arriving at the work site. It can save the customers yard, and can adjust the position and layout of the yard at will.
TECHNICAL PARAMETERS:
| Project | MB-800 | MB-1000 | MB-3012 |
| Main discharge belt | |||
| Length × width (mm) | 15000×B800 | 15000×B1000 | 30000×B1200 |
| Discharge height (mm) | 7000 | 7000 | 7000 |
| Power (KW) | 15 | 18.5 | 18.5KW×2 |
| Covered chassis model | M15T | M15T | M35T |
| Total working power (KW) | 30 | 35 | 37 |
| Total weight (T) | 15 | 18 | 35 |
| Machine throughput (t / h) | 110-400 | 200-500 | 600-1200 |
| Walking engine power: (KW) | 30 | 40 | 70 |
ADVANTAGE:
1. Intelligent control, fully hydraulic crawler moves on its own, can wirelessly remotely control the upper and lower flatbed trailers, to achieve long-distance transportation and rapid transfer operations;
2. A variety of power drives can be selected, such as diesel drive or hybrid electric drive or full electric drive;
3. Maneuverable and flexible, it can be put into use quickly after arriving at the site without the need to pre-fix the foundation or make supporting legs;
4. Large capacity, the maximum capacity of a single mobile conveyor can reach 600 tons / hour;
5. The height of the conveyor can be adjusted by hydraulic pressure, the operation is simple and the pile is high. And the whole machine is convenient for transportation.
DEVICE APPLICATION:
It is mainly used in the occasions where the loading and unloading locations often change, such as ports, docks, stations, coal yards, warehouses, construction sites, gravel yards, farms and other occasions. Especially suitable for short-distance transportation and handling of bulk materials or single pieces items weighing under 100 kg.
