Bucket Elevator
We offer complete industry grinding mill production line for designs, installation, support and maintenance with long-term technical support and fast response.

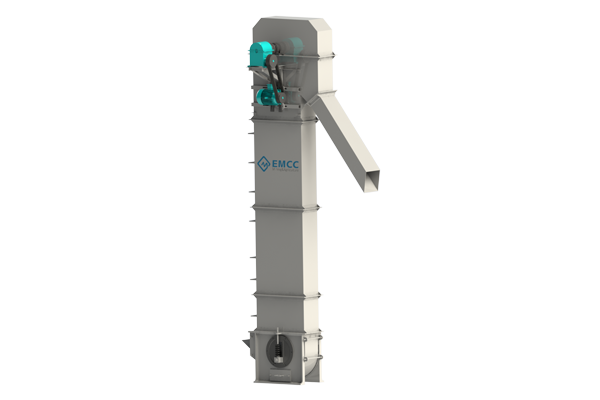

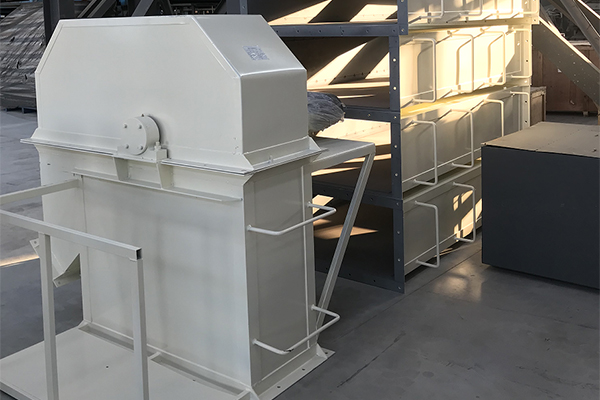

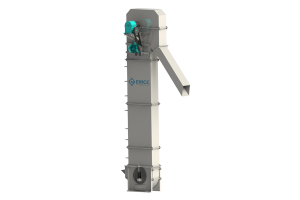

Bucket Elevator
DEVICE DETAILS:
Bucket Elevator is a large-scale machinery and equipment that can be transported by changing the potential energy, such as mine hoist, dam crossing hoist, etc. Broadly speaking, elevators, cranes, hoists, stable cars, cranes, hoists, etc. can all be called hoists. Hoist generally refers to large mechanical equipment with large power and strong lifting capacity. The flexible parts are driven by the power machinery to move the steel wire rope and the goods being transported up and down to complete the transportation process. The steel wire rope is an indispensable and important part of the lifting machinery. Wire rope and so on.
TECHNICAL PARAMETERS:
| Model | capacity (m / h) | Bucket speed (m / s) | Spindle speed (speed / min) | Material size (mm) | Hopper | ||
| Volume (L) | Bucket width (mm) | Bucket distance (mm) | |||||
| NE15 | 15 | 0.5 | 15.54 | ＜40 | 2.5 | 250 | 203 |
| NE30 | 32 | 16.45 | ＜50 | 7.8 | 300 | 305 | |
| NE50 | 60 | 16.45 | ＜50 | 15.7 | 300 | 305 | |
| NE100 | 110 | 14.13 | ＜70 | 35 | 400 | 400 | |
| NE150 | 170 | 14.13 | ＜70 | 52.2 | 600 | 400 | |
| NE200 | 210 | 10.9 | ＜100 | 84.6 | 600 | 500 | |
| NE300 | 320 | 10.9 | ＜100 | 127.5 | 600 | 500 | |
| NE400 | 380 | 8.3 | ＜120 | 182.5 | 700 | 600 | |
| NE500 | 470 | 7.1 | ＜120 | 260.9 | 700 | 700 | |
| NE600 | 600 | 7.1 | ＜120 | 33.2 | 700 | 700 | |
| NE800 | 800 | 6.2 | ＜140 | 501.8 | 800 | 800 | |
ADVANTAGE:
Driving power
The driving power is small, and the inflow-type feeding, inductive discharging, and large-capacity hopper-intensive layout are used. When the material is lifted, there is almost no return and excavation, so there is less reactive power.
Lifting range
The lifting range is wide. This type of hoist has less requirements on the type and characteristics of the materials. It can not only promote general powdery and small granular materials, but also improve more sharp materials. It has good sealing and less environmental pollution.
Operational capability
Good operation reliability, advanced design principles and processing methods ensure the reliability of the whole machine operation, and the failure-free time exceeds 20,000 hours. High lifting height. The hoist runs smoothly, so it can reach a high lifting height.
Service life
The service life is long, the feeding of the hoist adopts inflow type, no need to dig the material with bucket, and squeeze and collision between materials rarely occur. This machine is designed to ensure that materials are rarely scattered during feeding and discharging, reducing mechanical wear.
WORK PRINCIPLE:
The hopper lifts the material from the storage below, and as the conveyor belt or chain is lifted to the top, bypassing the top wheel and turning down, the bucket elevator dumps the material into the receiving tank. The driving belt of the bucket elevator with transmission is generally a rubber belt, which is installed on the lower or upper driving roller and the upper and lower redirecting roller. Chain-driven bucket elevators are generally equipped with two parallel transmission chains, with a pair of transmission sprocket wheels on the top or bottom, and a pair of redirecting sprocket wheels on the bottom or top. Bucket elevators are generally equipped with an organic shell to prevent dust from flying in the bucket elevator.
