Double Shaft Chain Fertilizer Crusher

We offer you a complete food drying solution with long-term technical support and fast response. Customization is available. Superior quality and Best price!

Home > Products > Crusher > Double Shaft Chain Fertilizer Crusher

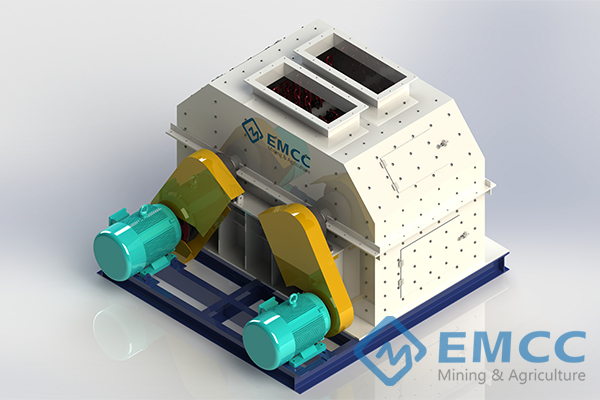

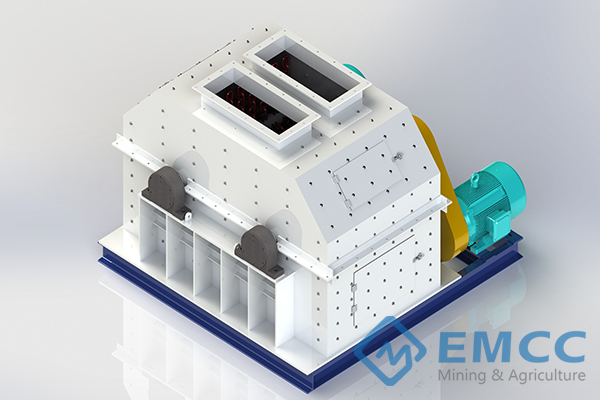

Double Shaft Chain Fertilizer Crusher

DEVICE DETAILS:

No matter nitrogen fertilizer, phosphatic fertilizer, compound fertilizer and organic fertilizer production, horizontal crushing machine plays its indispensable role in smashing bulk fertilizer raw materials into powder for making fertilizer particles. Our double shaft horizontal crusher is suitable to crush many fertilizer materials like amino acid, cereals, straws, fish powder, sludge etc. whose moisture content is about 14% and 6% free acid content. It is popular in any size fertilizer plant, and we have always been researching and developing fertilizer equipmentbased on convenience tenet.

TECHNICAL PARAMETERS:

Model Center distance(mm) Capacity(t/h) Feeding size(mm) Motor model Power(kw) Weight (kg) Dimension (mm)
DLF-50 400 5-9 <100 Y132M-4 7.5×2 1425 1754x1292x1115
DLF-60 600 6-10 <100 Y160M-4 11×2 2100 1800x1610x1430
DLF-70 800 12-16 <120 Y160L-4 15×2 3600 2200x1980x1510
DLF-80 800 16-20 <120 Y180M-4 18.5×2 4500 2320x2220x1730
DLF-100 1000 20-25 <120 Y180L-4 30×2 5400 2520x2200x1800

ADVANTAGE:

1.Chains are of high strength and wear-resistant alloy material,solid bearings and durable.
2.Fine and uniform powder size,least sticking to crushing chamber.
3.Simple operation,high speed and efficiency,large crushing capacity.
4.Advanced roller design,ensure enough space for completely crushing.
5.Easy to maintain, fit for continuous working

WORK PRINCIPLE:

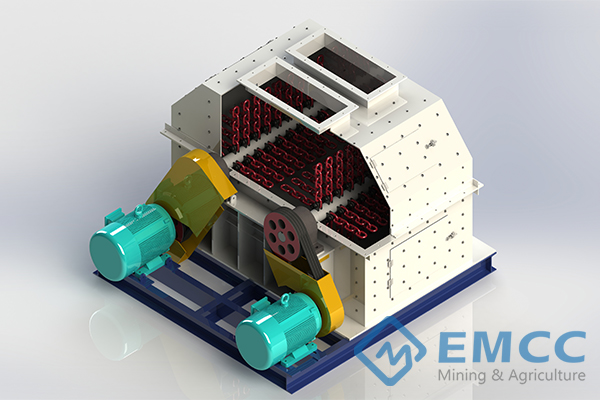

The horizontal crusher body mainly consists of motor,rotating shaft,crushing chains,chamber,etc. The motor offers power for rotating shafts and the circular chains hung on the main shafts rotate in the opposite way. Between the two main shafts is crushing area. The fertilizer materials fell down are smashed and discharged from the bottom of the crusher. The crushed fertilizer powder fine and uniform with the size range of 0.7mm-4mm and the crushing rate is above 95%, with the moisture content of less than 6%.
